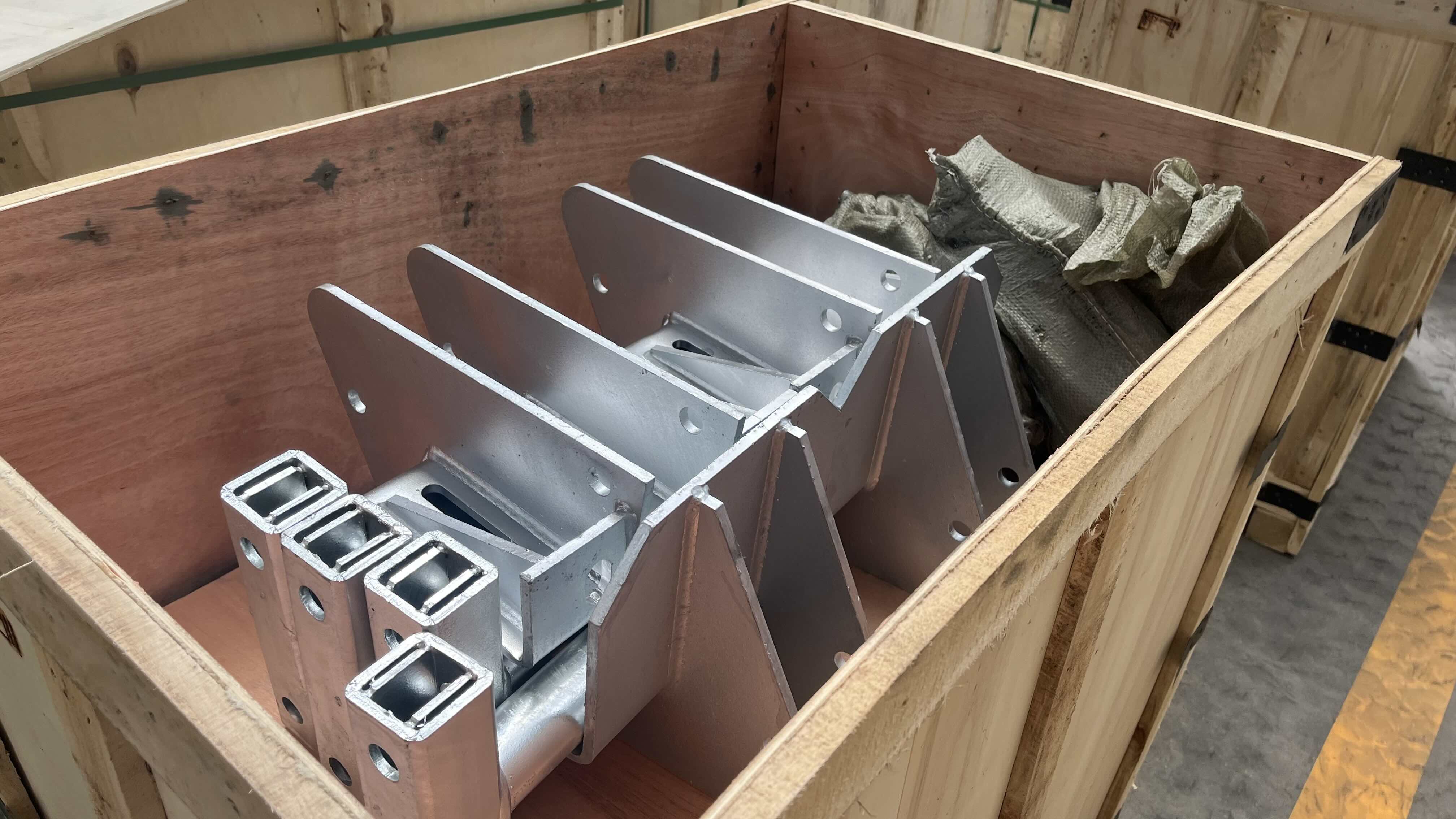

Seat & T-bar

▶	T-Bar:
	■ Squre pipe: 2.5”x2.5”x10”
	■ Pipe: 57*8mm
▶	Seat: See drawing

Each 2 Thread Rod + Heavy Duty Nuts + 1 Heavy Duty Washer + 2 sets of Bolt-Nut.

Surface finished: Hot dip galvanizing, in accordance with ASTM A123/EN ISO 1461 standards for hot-dip zinc coatings.

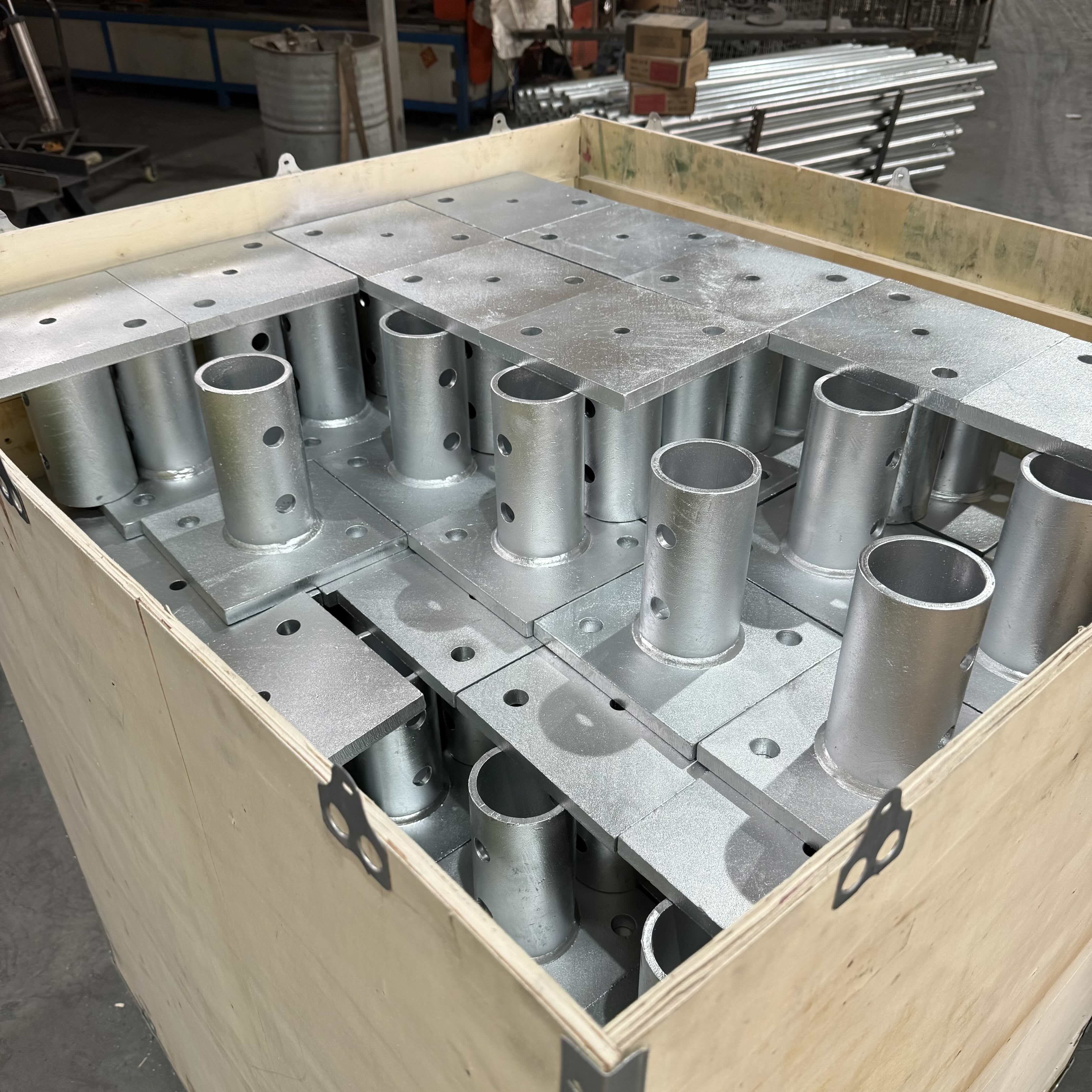

Flat Plate Cap

▶	Flat Plate:
	■ Material: Q235B, in accordance with ASTM A36
	■ Size: 6”/8”/10”/12”
▶	Pipe:
	■ Material: Q355B, in accordance with ASTM A572 Gr. 50
	■ Size: to fit over 73/89mm pipe

Each 2 sets of Bolt-Nuts.

Surface finished: Surface finished: Hot dip galvanizing, in accordance with ASTM A123/EN ISO 1461 standards for hot-dip zinc coatings.

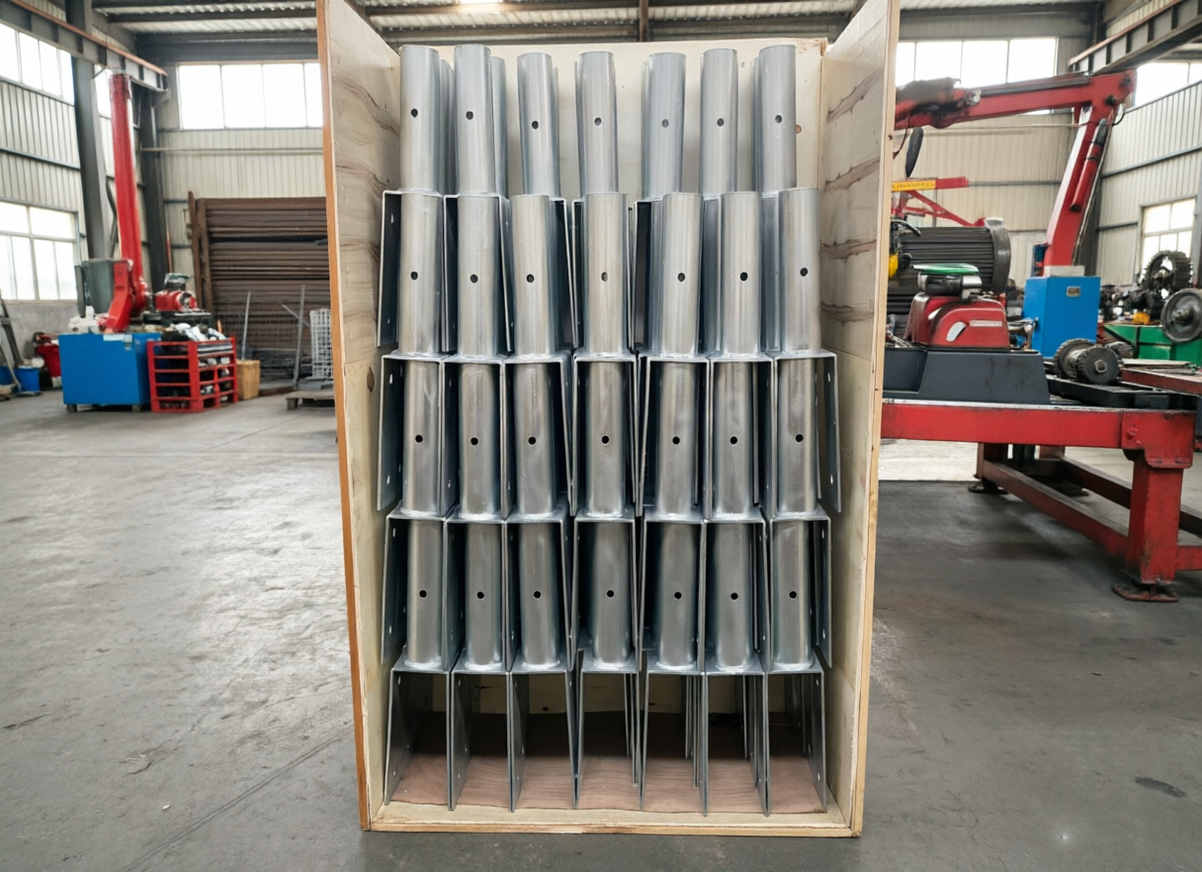

U - Shaped Cap

▶	U Plate:
	■ Material: Q235B
	■ Size: 4”/6”/10”
▶	Pipe:
	■ Material: Q345B
	■ Size: 896.45305mm

Each 2 sets of Bolt-Nuts.

Surface finished: Hot dip galvanizing, in accordance with ASTM A123/EN ISO 1461 standards for hot-dip zinc coatings.

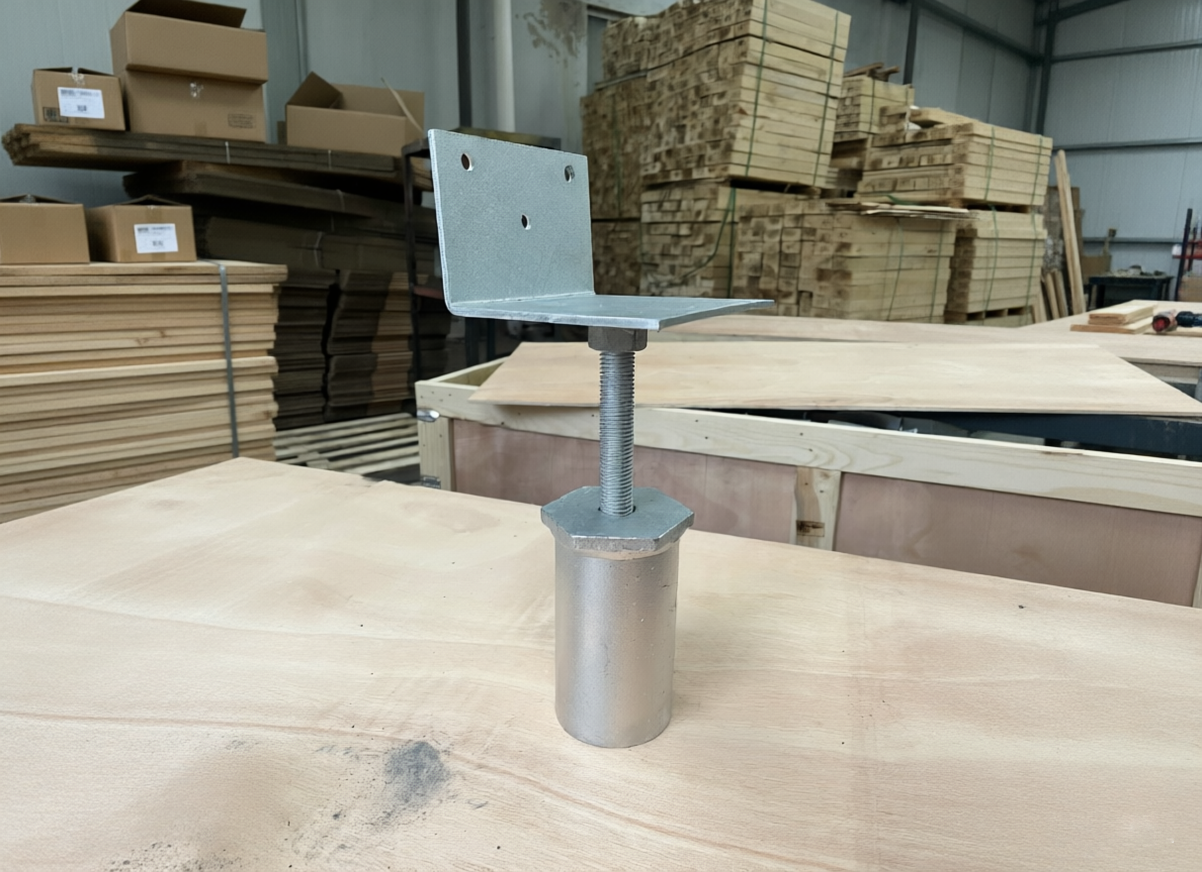

L - Shaped Cap

▶	L Bracket:
	■ Material: Q235B
	■ Size: 4”/6”/10”
▶	Pipe:
	■ Material: Q345B
	■ Size: to fit over 73/89mm pipe

Surface finished: Hot dip galvanizing, in accordance with ASTM A123/EN ISO 1461 standards for hot-dip zinc coatings.

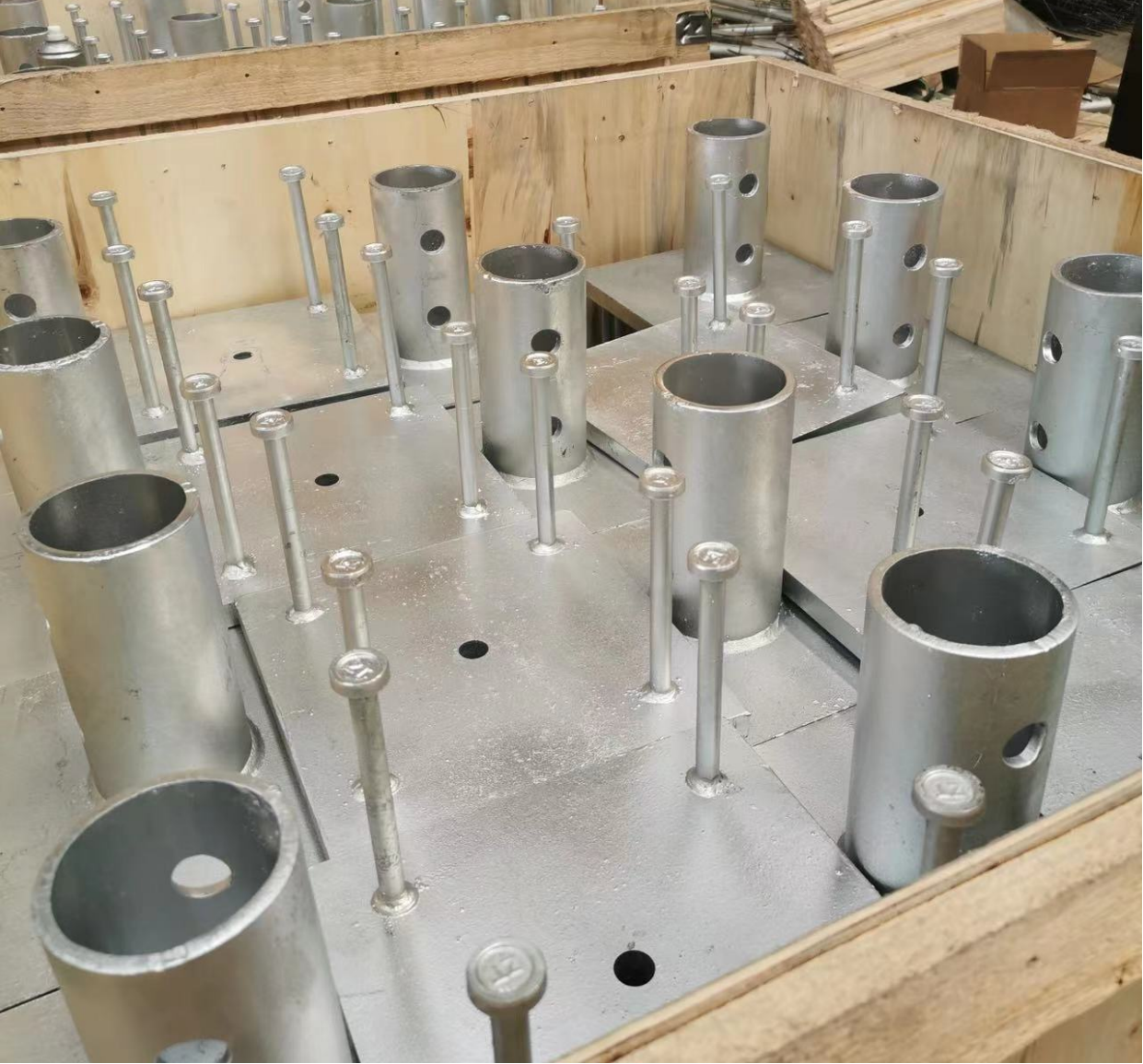

Stud Cap

▶	Plate:
	■ Material: Q235B
	■ Size: 6”/8”/10”/12”
▶	Pipe:
	■ Material: Q345B
	■ Size: to fit over 73/89mm pipe
▶	Studs: 16*180mm

Each 2 sets of Bolt-Nuts.

Surface finished: Hot dip galvanizing, in accordance with ASTM A123/EN ISO 1461 standards for hot-dip zinc coatings.
